Ultimate Guide About Compression Spring?

Compression springs seem simple, yet they're vital components in countless machines and devices.

Compression springs store energy and absorb shock, making them essential in everything from automotive suspensions to medical devices. Understanding their design principles, material options, and applications can help you select the right spring for your specific needs while ensuring optimal performance and longevity.


Compression springs are mechanical devices that resist axial compression, pushing back with a proportional force when compressed. They come in various configurations, including cylindrical, conical, and barrel shapes, with each type offering distinct advantages for specific applications. The spring rate, or the amount of force required to compress the spring per unit of length, determines how it will perform under load.

How Do Compression Springs Work in Mechanical Systems?

Understanding the physics behind compression springs reveals their incredible versatility in mechanical engineering.

Compression springs operate on Hooke's Law, which states that the force needed to compress or extend a spring is proportional to the distance it's compressed or extended. I've worked with springs in everything from delicate watch mechanisms to heavy industrial equipment, and the basic principle remains the same: they store energy and release it as needed, providing cushioning, storing energy, or maintaining force.


The Mechanical Principles of Compression Springs

Compression springs function by resisting compressive forces while returning to their original shape when the load is removed. The fundamental principles governing their behavior include:

• Spring Rate: The amount of force required to compress the spring by one unit of length. Measured in pounds per inch (N/mm) or Newtons per millimeter, this value determines how stiff or soft a spring will be.

• Stress Distribution: The internal forces distributed throughout the wire as the spring compresses. Different cross-sections and end configurations affect how stress is distributed, influencing the spring's durability and fatigue life.

• Buckling: The tendency of long, thin springs to buckle or buckle when compressed beyond their critical length. Proper design considers this phenomenon to ensure stable performance.

Parameter	Description	Importance
Wire Diameter	The thickness of the wire used to create the spring	Affects spring strength and flexibility
Mean Coil Diameter	The average diameter of the spring coils	Determines the spring's overall size and load capacity
Free Length	The length of the spring when not under any load	Influences available deflection
Number of Coils	The total active coils in the spring	Affects spring rate and flexibility
Pitch	The distance between adjacent coils	Determines how tightly the spring is wound

I recall a project where we misunderstood the relationship between wire diameter and spring rate. The springs seemed too soft for our application until we realized we needed to increase the wire thickness, not just the number of coils. That experience taught me how interconnected all these parameters really are.

What Materials Are Best for Compression Springs?

Choosing the right material is crucial for compression spring performance and longevity.

The material you select for your compression springs directly impacts their durability, temperature resistance, and performance characteristics. I've worked with various materials over the years, and each has its place depending on the application environment, required cycle life, and budget considerations. The wrong material choice can lead to premature failure, while the right one ensures reliable operation for years.

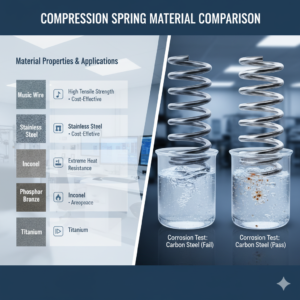

Common Compression Spring Materials and Their Properties

Different materials excel in different environments and applications. Here's a comparison of popular compression spring materials:

Material	Key Characteristics	Best Applications
Music Wire	High tensile strength, good fatigue resistance	General industrial applications where cost is a concern
Stainless Steel 302	Excellent corrosion resistance, moderate strength	Marine environments, food processing, medical devices
Stainless Steel 17-7PH	High strength, good corrosion resistance	Aerospace, high-temperature applications
Phosphor Bronze	Good corrosion resistance, non-magnetic	Electrical applications, marine environments
Inconel	Outstanding heat resistance, excellent strength	High-temperature applications, aerospace

The choice of material depends on several factors, including operating temperature, corrosive elements, required strength, and whether the spring will be subject to high stress cycles. For instance, I once selected a music wire spring for an application involving occasional moisture exposure. While cost-effective initially, the springs began to show signs of corrosion after just a few months. Switching to stainless steel solved the problem, even though it increased our material costs.

How to Design Compression Springs for Specific Applications?

Designing compression springs requires balancing multiple variables to achieve optimal performance.

Compression spring design isn't about making something that looks like a spring. It's about calculating the precise combination of dimensions, wire diameter, coil count, and material thickness to meet specific force requirements within the available space. I've learned through experience that successful spring design often involves trade-offs between different parameters to achieve the best overall solution for each application.


Key Design Parameters to Consider

When designing a compression spring, several critical parameters must be carefully considered:

• Deflection Requirements: How much the spring needs to compress under load. This determines the number of active coils needed to achieve the desired spring rate while staying within physical space constraints.

• Load Requirements: The maximum force the spring must handle. This influences wire diameter and material selection to ensure the spring won't yield or break under operating conditions.

• Space Constraints: The physical area available for the spring. Sometimes innovative designs like conical or barrel springs can solve space problems that standard cylindrical springs cannot.

• End Configuration: How the spring attaches to other components. Common options include closed and ground ends for flat surfaces, open ends for plain bearing applications, and various threaded inserts.

• Tolerances: The allowable variation in dimensions. Tighter tolerances increase precision but also manufacturing costs, while looser tolerances reduce cost but may affect performance consistency.

I remember one particularly challenging design where we needed a spring that could fit into a very narrow space while still providing sufficient force. We experimented with several configurations before settling on a nested spring design with two springs working in parallel. This solution met all our requirements, though it required more complex manufacturing and quality control processes.

What Manufacturing Processes Ensure High-Quality Compression Springs?

The manufacturing process significantly impacts compression spring quality and performance.

Not all compression springs are created equal. The difference between a reliable spring that performs consistently for years and a poor-quality one that fails prematurely often comes down to the manufacturing processes and quality controls employed throughout production. I've seen firsthand how attention to detail in manufacturing can dramatically improve spring reliability, especially in high-cycle applications.

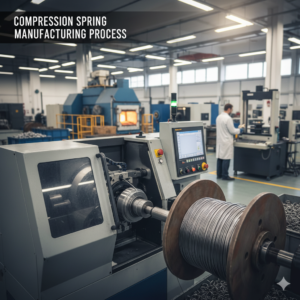

The Compression Spring Manufacturing Journey

Creating quality compression springs involves several critical stages, each requiring precision and attention to detail:

1. Wire Selection: Starting with high-quality raw material that meets specifications is essential. The wire's diameter, surface finish, and mechanical properties all contribute to final performance.

2. Coil Forming: The wire is wound around a mandrel using precision CNC machines. This step determines the spring's basic geometry and requires careful control of pitch, diameter, and coil count.

3. Heat Treatment: Springs often undergo stress-relieving heat treatments to remove internal stresses created during winding and improve fatigue life.

4. End Preparation: Depending on requirements, springs may have their ends ground flat to improve stability and contact with adjacent components.

5. Surface Treatment: Various coatings or platings may be applied to enhance corrosion resistance and improve appearance.

6. Quality Testing: Springs are tested for dimensional accuracy, spring rate, and sometimes subjected to fatigue testing to verify performance under actual operating conditions.

During our initial manufacturing run with a new supplier, we discovered they had skipped the stress-relieving heat treatment step. While the springs looked perfect and met dimensional specifications, they began failing prematurely in field applications. This experience reinforced my belief that manufacturing processes must be precisely controlled and never skipped for cost reasons.

How Do Compression Springs Fail and How to Prevent It?

Understanding compression spring failure modes is crucial for preventing costly breakdowns.

Compression springs may seem simple components, but they can fail in various ways depending on design, material selection, and operating conditions. I've investigated enough spring failures to know that most aren't random events but rather the result of specific design or application issues that can be identified and addressed through careful analysis and preventive measures.

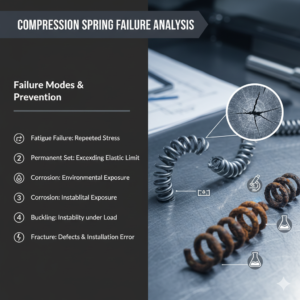

Common Compression Spring Failure Modes and Prevention Strategies

Compression springs typically fail in predictable ways. Recognizing these patterns helps prevent similar issues in future applications:

Failure Mode	Common Causes	Prevention Methods
Fatigue Failure	Repeated stress cycles beyond material endurance	Improved design, higher quality material, surface treatments
Permanent Set	Spring compressed beyond elastic limit	Increase wire diameter, use higher strength material
Corrosion	Exposure to moisture, chemicals, or varying temperatures	Use corrosion-resistant materials, apply protective coatings
Buckling	Spring too long relative to its diameter	Reduce free length, increase diameter, use guide rods
Fracture	Stress concentrations, surface defects, or improper installation	Smooth wire surface, avoid sharp corners in design

One particular case involved springs in an agricultural application failing due to fertilizer-induced corrosion. The springs were made of standard carbon steel and showed signs of rust after just months of service. Switching to a stainless steel grade specifically designed for agricultural environments solved the problem completely. This experience highlighted how important it is to consider the entire operating environment when selecting spring materials.

What Are the Latest Innovations in Compression Spring Technology?

The world of compression spring technology continues to evolve with new materials and manufacturing techniques.

Compression spring technology may seem mature, but constant innovation is pushing the boundaries of what's possible in terms of performance, weight reduction, and reliability. I've been following these developments closely, as adopting new technologies can provide significant advantages in competitive applications where every gram of weight savings or percentage point of performance improvement matters.


Emerging Trends in Compression Spring Development

Several key innovations are shaping the future of compression spring technology:

• High-Performance Alloys: New materials offer improved strength-to-weight ratios and better resistance to fatigue and corrosion. These advanced alloys allow for lighter springs without compromising performance.

• Advanced Coatings: Nano-scale coating technologies provide superior protection while maintaining precise tolerances. Some new coatings can reduce friction by up to 50%, improving energy efficiency in applications like automotive suspensions.

• Variable Pitch Designs: Innovative winding techniques create springs with varying coil spacing. This design improves performance characteristics by providing non-linear spring rates tailored to specific load requirements.

• Additive Manufacturing: While less common for traditional springs, 3D printing enables the creation of complex geometries that would be impossible with conventional manufacturing methods. This opens new possibilities for customized solutions in low-volume applications.

• Integrated Sensing: Smart springs that incorporate strain gauges or other sensors monitor performance in real-time, providing valuable data about system health and enabling predictive maintenance.

One application I worked on involved replacing conventional springs with variable pitch designs in a mechanical testing apparatus. The new springs provided a more consistent response across the entire compression range, significantly improving measurement accuracy. This case demonstrated how even seemingly small innovations can have substantial impacts on overall system performance.

Conclusion

Compression springs play critical roles in countless mechanical systems worldwide.
Understanding their design principles, materials, and applications is essential for selecting the right springs.
